Jak możemy zamienić dach w coś wyjątkowego? Razem.

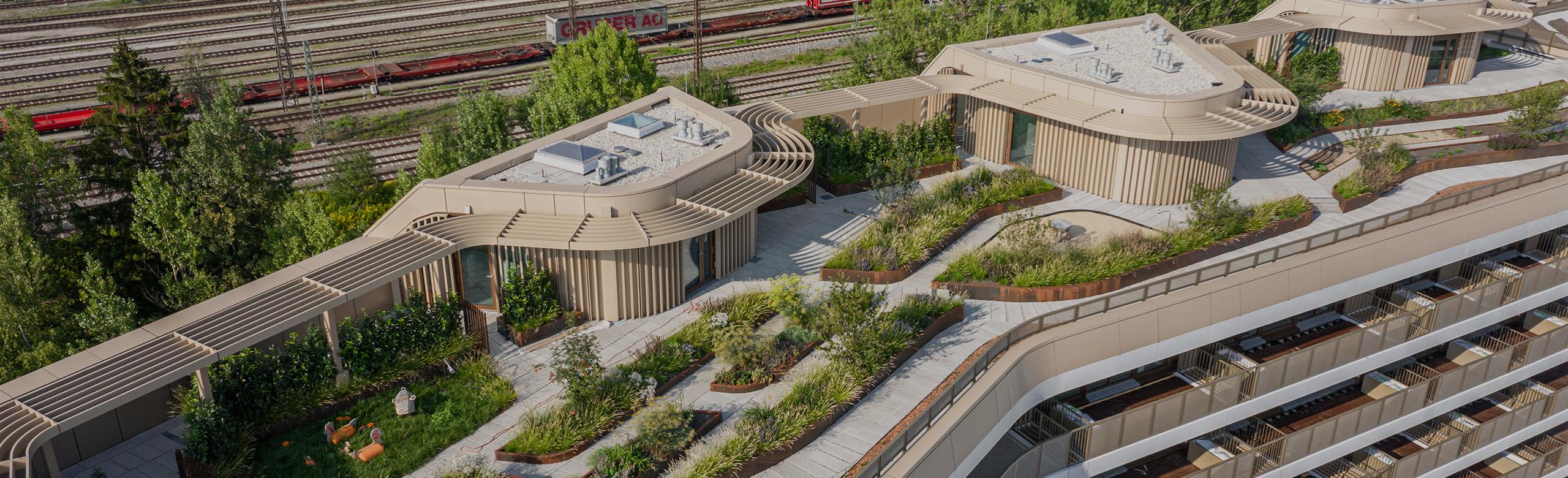

Tarasy na dachach są coraz popularniejszym miejscem spotkań. Po przemyślanym osłonięciu i wyciszeniu stają się atrakcyjnym miejscem pod restaurację, bar lub inne nowoczesne zastosowanie.
Modna restauracja pod przeszklonym dachem lub duży grill na otwartym tarasie – hotelowe ogrody dachowe i tarasy są modne na całym świecie. IzolacjaREGUPOL sound and drain zapewnia ciszę i spokój w pomieszczeniach znajdujących się poniżej. Dzięki europejskiemu certyfikatowi CE produkt jest w pełni zgodny z przepisami UE.
Izolacja REGUPOL sound and drain działa również jako warstwa ochronna dla membrany dachowej, dodatkowo zapewnia lepsze odprowadzanie wody. Pozwól nam Cię wesprzeć!
Roof Terrace Constructed of Solid Wood
In solid wood construction, a balanced interplay of mass and spring is required above the solid wood element. To meet the highest possible sound insulation requirements, heavy paving slabs rest on pedestal supports placed on REGUPOL sound and drain 22; beneath this lies an additional mass-increasing layer of paving slabs and gravel over REGUPOL resist and the waterproofing membrane. In a test setup measured at the Austrian Wood Research Institute, this construction achieved a standard impact sound level of Ln,w (CI,50–2500) = 41 (+3) dB.
The standard impact sound level, Ln,w, describes the entire structure. The ΔLw values in the table, on the other hand, indicate the reduction achieved by the insulation membrane.
Balconies and pergolas
For balconies and pergolas, REGUPOL sound and drain 22 is used in combination with the Schöck Isokorb® XT.
Planning Guidelines
- When installing concrete sidewalk slabs on a gravel bed, first perform a test installation to check stability, as gravel mixtures have varying load-bearing capacities. For greater stability, use compression-resistant thermal insulation with a compressive strength of ≥ 300 kPa. A perimeter insulation strip is part of the tested gravel bed construction.
- Check compatibility with PVC-based waterproofing membranes on a case-by-case basis.
- Supplied in rolls: Length 10,000 mm, width 1,250 mm, thickness 15 mm, weight per unit area 6.0 kg/m². The geotextile overlaps at the sides, which speeds up installation.
What You Need to Know About Impact Sound Insulation on Rooftop Terraces
Yes. The rail is CE-marked and covered by the European Technical Assessment ETA 18/0239. The ETA provides planning certainty for the European Economic Area. For each configuration listed in the table, there is a test report, a CAD drawing, and a bid specification.
The textured underside of the insulation membrane provides drainage, while the geotextile on the top side keeps dirt out.
Yes. REGUPOL sound and drain 22 is classified as a protective layer in accordance with DIN 18531-2 and, according to ETA 18/0239, is intended to prevent damage to the roof waterproofing. Compatibility with PVC-based waterproofing systems must be determined on a case-by-case basis.

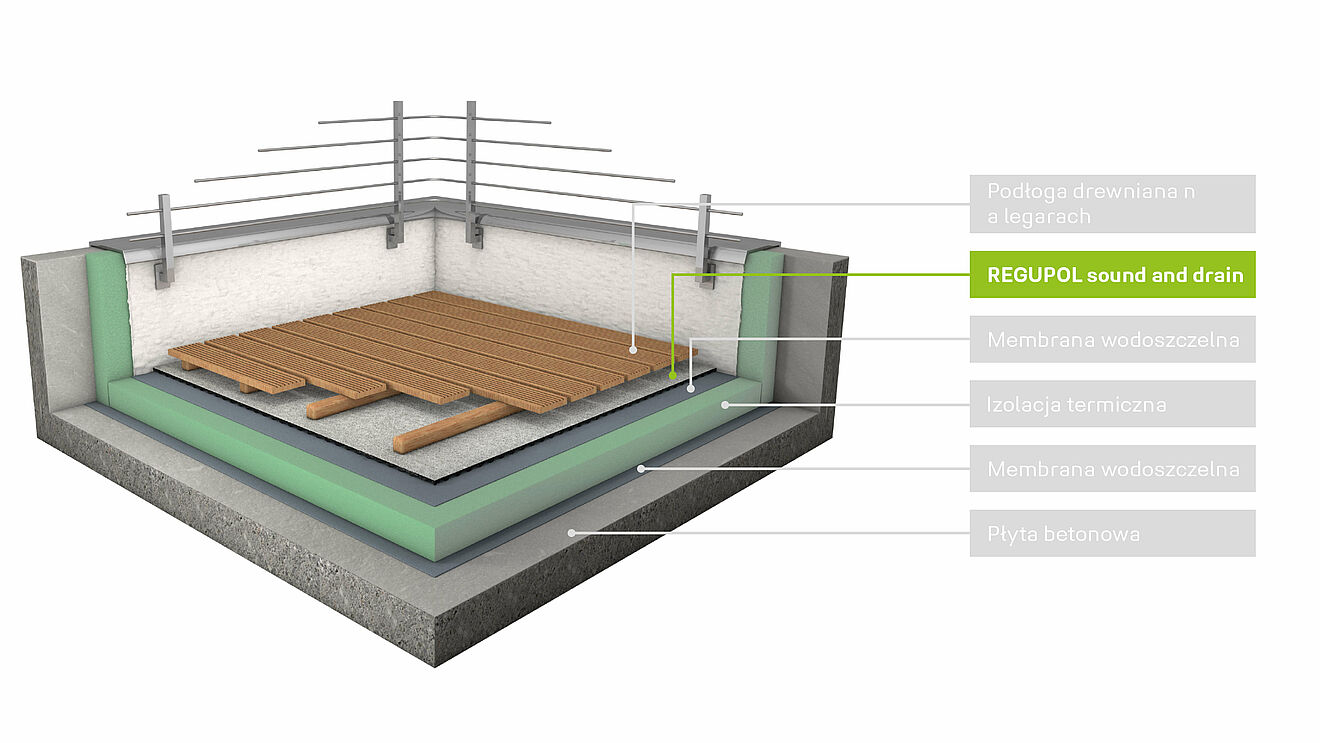

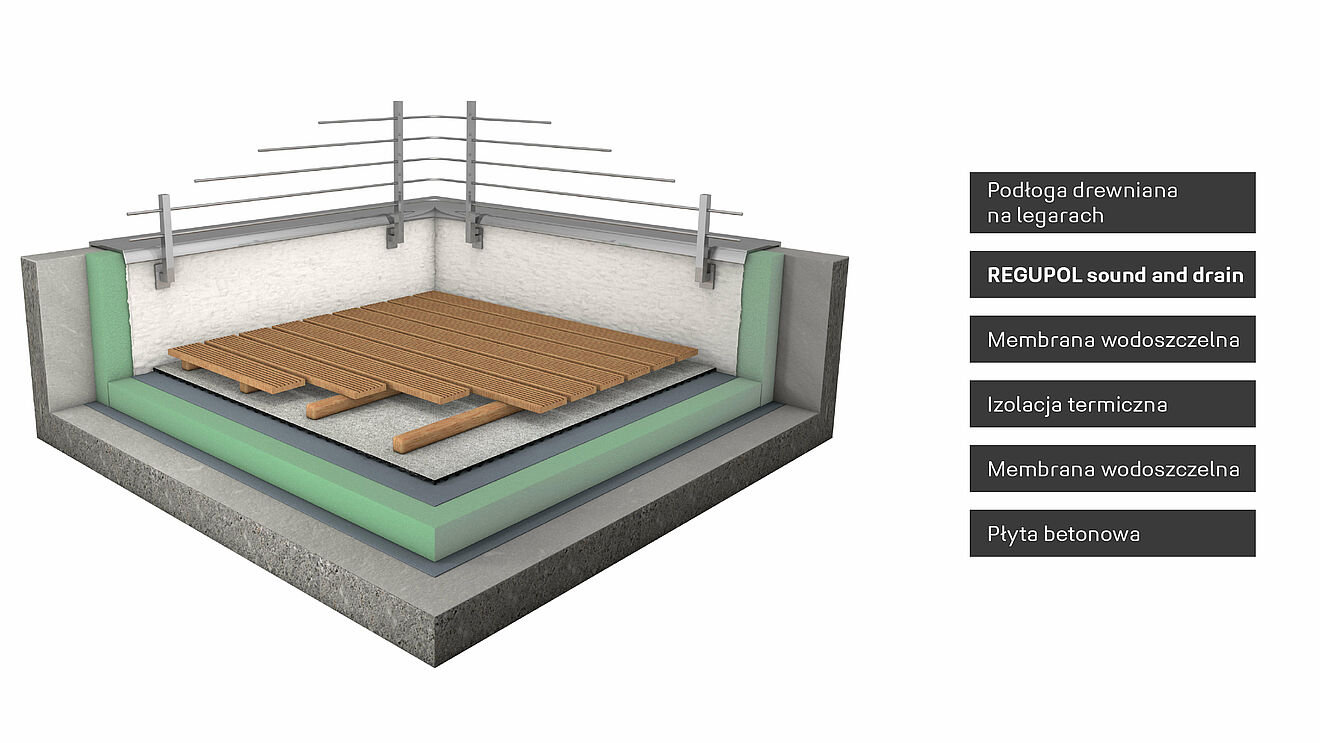

Under concrete sidewalk slabs on pedestals or in a gravel bed, under ceramic tiles on pedestals (including those with support profiles), and under wooden planks on support battens or pedestals.
With REGUPOL sound and drain 22, tested systems installed on concrete slabs achieve an impact sound reduction of ΔLw ≥ 28 dB to ≥ 37 dB. The system using concrete sidewalk slabs on pedestal supports achieves the highest value.
